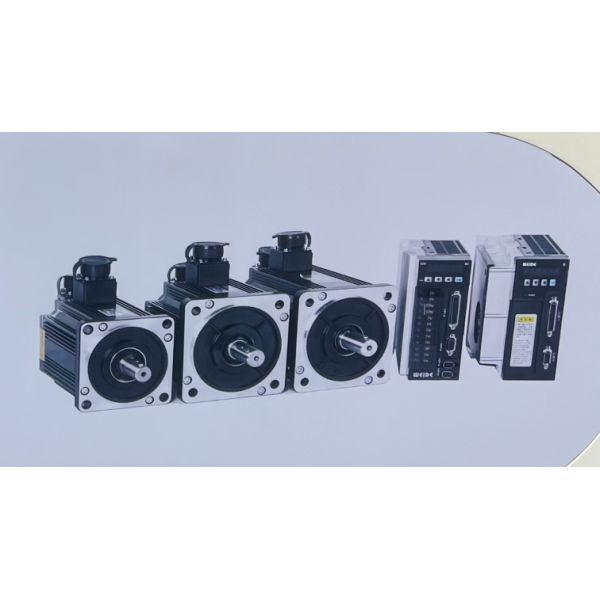

High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive

Name: High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive
Brand: WEIDE
Price: 606 USD

Quality High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive for sale

Brand Name : WEIDE

Model Number : 180ST-M19015H4/3.0kw

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 606 USD

Payment Terms : L/C,T/T

Supply Ability : 5000/years

Delivery Time : 15days

Packaging Details : 10.00cm * 6.00cm * 12.00cm 3.5kg

Name : AC Servo Drive

Control Mode : Position Control

Compatible Feedback Units : Compatible Feedback Units

Adopts the latest power device IPM : featuring compact size, strong overload capacity, and high reliability

Optimized brake unit : suitable for frequent start-stop applications

Simple operation : Convenient trial run, monitoring, and parameter setting with only 4 keys

Applicable Power Range : 0.1~3.8 KW

Contact Now

High Accuracy AC Servo Drive with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Precision Position Control

Precision motion control solution featuring integrated servo drive technology for industrial automation applications.

Model Number

180ST-M19015H4/3.0kw

Mathematical Model

Linear

Certifications

CCC, ISO 9001, CE

Material

Aluminum Alloy

Input Power

Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V

Operating Temperature

Working: 0~40℃; Storing: -40~50℃

B Series Universal Servo Driver & Motor Features

High Accuracy AC Servo Drive IP20 Servo Motor With Integrated Drive

Position Control Mode with adaptive feedback unit
2500ppr incremental encoder and wire-saving encoder compatibility
Advanced IPM (Intelligent Power Module) for high reliability
Optimized braking unit for frequent start/stop operations
Easy operation with trial operation, monitoring, and parameter setting via 4 keys
Adaptive power range: 0.1~3.8KW

Technical Specifications

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

Control & Performance Specifications

Control Mode: PWM sine wave vector control
Feedback Mode: 2500PPR incremental encoder
Speed Frequency Response: >400Hz
Speed Regulation Ratio: 1:5000
Speed Fluctuation Ratio: <±0.03% (load 0~100%)
IP Grade: IP20
Humidity: Working 40%~80% (no dew); Storing below 93% (no dew)

Digital I/O & Monitoring

Digital Input: Servo-on, Clear, Limit switches, Emergency stop, Electronic gear
Digital Output: Servo ready, Alarm, Position completed, Speed arrival
Monitor Functions: Speed, current position, position deviation, motor torque, motor current
Protection Functions: Overspeed, overvoltage, overcurrent, overload, encoder abnormality

Technical Drawings & Wiring

Certifications & Compliance

Industry Applications

Packaging & Delivery

Transport Package: Carton | Specification: 355*305*310 mm
