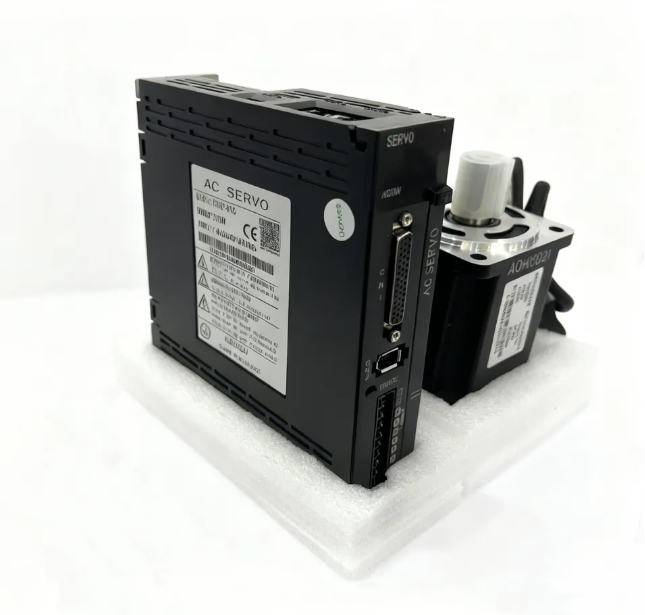

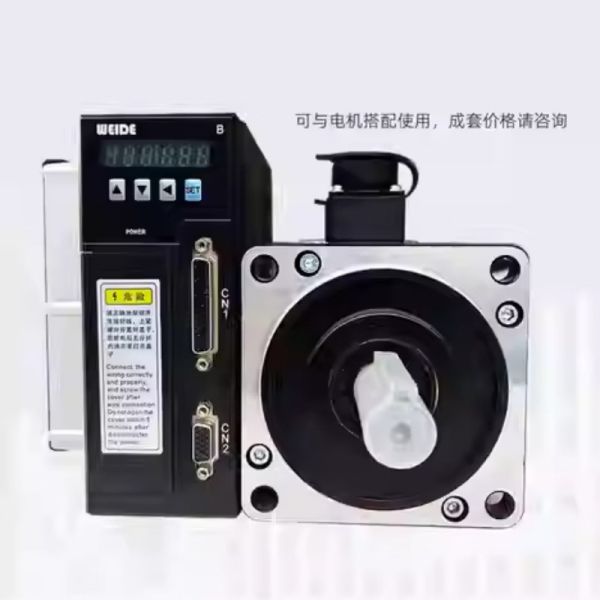

Position Control AC Servo Drive RS485 Modbus Servo Drive IP20

Name: Position Control AC Servo Drive RS485 Modbus Servo Drive IP20
Brand: WEIDE
Price: 144 USD

Quality Position Control AC Servo Drive RS485 Modbus Servo Drive IP20 for sale

Brand Name : WEIDE

Model Number : 1000W

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 144 USD

Payment Terms : L/C,T/T

Supply Ability : 5000/years

Delivery Time : 15days

Packaging Details : 10.00cm * 6.00cm * 12.00cm 3.5kg

Name : AC Servo Drive

Control Mode : Position Control

Compatible Feedback Units : Compatible Feedback Units

Adopts the latest power device IPM : featuring compact size, strong overload capacity, and high reliability

Optimized brake unit : suitable for frequent start-stop applications

Simple operation : Convenient trial run, monitoring, and parameter setting with only 4 keys

Applicable Power Range : 0.1~3.8 KW

Contact Now

RS485 Modbus AC 220V Three-Phase Servo Drive with 2500PPR Incremental Encoder and PWM Sine Wave Vector Control for Precision Position Control

Product Overview

Advanced B series universal servo drive and motor system with position control capability, designed for precision industrial automation applications.

Key Specifications

Model Type	1000W	Mathematical Model	Linear
Signal Type	Continuous	Function	Automatic Control, Protection
Certifications	CCC, ISO 9001, CE	Condition	New
Input Power	Single Phase L1, L2 / Three Phase L1, L2, L3 AC220V	Temperature Range	Working: 0~40℃; Storing: -40~50℃
Control Type	PWM Sine Wave Vector Control	Feedback Mode	2500PPR Incremental Encoder

Position Control AC Servo Drive RS485 Modbus Servo Drive IP20

B Series Universal Servo Drive Features

Position Control Mode with adaptive feedback unit
2500ppr incremental encoder and wire-saving encoder support
Advanced IPM (Intelligent Power Module) for high reliability
Optimized braking unit for frequent start/stop operations
Easy operation with trial operation, monitoring, and parameter setting via 4 keys
Adaptive power range: 0.1~3.8KW

Technical Specifications by Model

Model No.	10B	15B	20B	30B
Output Power (KW)	0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)	0.01-1.3	1.9-4	4-10	6-15

General Specifications

Input Power	Single Phase L1,L2 / Three Phase L1,L2,L3 AC220V -15%~+10%
Temperature Range	Working: 0~40℃; Storing: -40~50℃
Humidity	Working: 40%~80% (no dew); Storing: below 93% (no dew)
IP Grade	IP20
Control Mode	PWM sine wave vector control

Advanced Features

Speed Frequency Response: >400Hz
Speed Fluctuation Ratio: <±0.03% (load 0~100%)
Speed Regulation Ratio: 1:5000
Encoder Signal Output: A,B,Z differential output
Comprehensive protection functions including overspeed, overvoltage, overcurrent, and overload

Certifications & Compliance

Industry Applications

Packaging & Delivery
