BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity

Product Categories
SHENZHEN LAEG CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

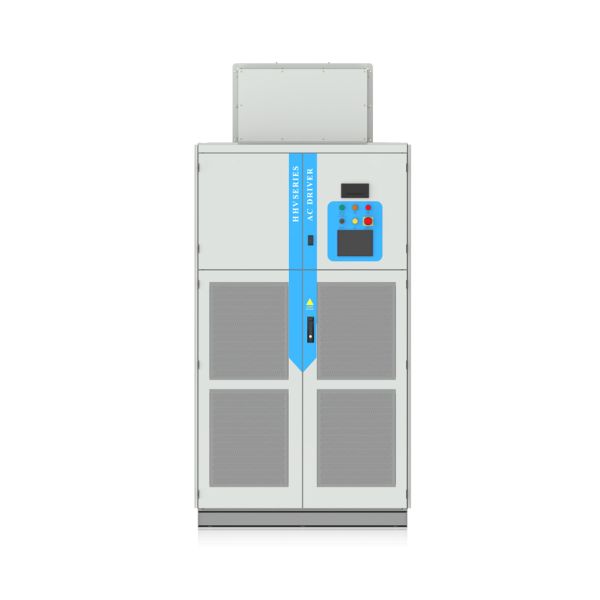

BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity

Model Number : BDH series

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 243 USD

Payment Terms : L/C,T/T

Supply Ability : 30000/Months

Delivery Time : 15days

Drive Type : Frequency Inverter

Insulation Voltage : 800V/1600V

Humidityrange : 5% to 95% non-condensing

Model No : N310-20P5

Output Voltage : Customizable

Output Phase : 3phase

Energy Function : Four-quadrant Energy regeneration

Output Power : 0.75KW-55KW

Packaging Specifications : 50ml~1000ml

Input Voltage : 220V to 380V

Shipping Method : DHL/FedEx/EMS/TNT

Power Range : 2.2KW-5000KW

Motor Compatibility : PMSM Motor

Voltage : 220V,380V,400V,415V,440V,460V,480V

Frequency Resolution : 0.01Hz

Accuracy : 0.5% for VF application

Protectionfeatures : Overvoltage, undervoltage, overload, short circuit, phase loss

Displaytype : LCD or LED display

Size : 167.5*185.8*80mm

Inputfrequency : 50/60 Hz

Response Speed : Rapid

Application : Pumps,fans,compresors,conveyors,Crane

Energy Regeneration : Four-quadrant

Powerrating : 0.5 kW to 500 kW

Controlmethod : V/f control, Vector control, Sensorless vector control

Torque Control : Direct

Colour : grey

Name : Variable Frequency Drive

Contact Now

BDH-100-200: Precision High-Voltage Drive for Moderate Power Loads
The BDH-100-200 is a compact yet robust Medium Voltage VFD designed for 10kV power systems. Ideal for precision control of mid-sized industrial pumps and fans, this model balances energy efficiency with a small footprint. It leverages the cascaded H-bridge topology to deliver a "Grid-friendly" performance, ensuring your facility remains compliant with harmonic regulations without additional filtering costs.
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Basic Specifications
Model NO. BDH-100-200
Input Voltage 10kV (±10%)
Rated Capacity 250kVA
Rated Output Current 15A
Control Mode High-performance Vector
Cooling Method Forced Air Cooling
Power Factor ≥0.96 (Full Load)
Compliance IEEE 519 / IEC Standards
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
About Our Company
We are a professional enterprise specializing in the R&D, manufacturing, and sales of high, medium, and low-voltage inverters, energy-saving control systems, servo drives, and New Energy Vehicle (NEV) motor drive technologies. Backed by a dedicated technical and management team with over 20 years of experience in theoretical research, product development, and quality control, we are proud to be one of the pioneers in China to independently develop inverter products.
Technological Excellence: KOCINVERTER utilizes world-leading technological solutions, including advanced vector control and torque control. Our performance has reached the international advanced level, making our products highly capable of directly replacing European, American, and Japanese brands in various demanding applications.
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Key Features
  • Harmonic Suppression: Utilizes multi-pulse phase-shifting rectification to keep THD (Total Harmonic Distortion) within the strictest international limits, protecting sensitive upstream equipment.
  • Modular Unit Bypass: Equipped with an automatic bypass function for power units, ensuring that a single-point failure does not lead to a total system shutdown, maximizing uptime.
  • Optimized Torque Control: Provides superior low-frequency torque output, making it suitable for applications requiring stable speed regulation under varying load conditions.
Product Series Specifications
10kV BDH Series
Model Rated Capacity (kVA) Output Current (A) Width L (mm) Depth W (mm) Height H (mm)
BDH-100-200 250 15 2400 1300 2000
BDH-100-250 316 19 2400 1300 2000
BDH-100-280 350 21 2400 1300 2000
BDH-100-315 400 24 2400 1300 2000
BDH-100-355 450 27 2400 1300 2000
BDH-100-400 500 30 2400 1300 2000
BDH-100-450 560 34 2400 1300 2000
BDH-100-500 630 38 2400 1300 2000
BDH-100-560 700 42 2400 1300 2000
BDH-100-630 800 47 2400 1300 2000
6kV BDH Series
Model Rated Capacity (kVA) Output Current (A) Width L (mm) Depth W (mm) Height H (mm)
BDH-060-160 200 20 2400 1300 2000
BDH-060-200 250 25 2400 1300 2000
BDH-060-220 275 28 2400 1300 2000
BDH-060-250 315 31 2400 1300 2000
BDH-060-280 350 35 2400 1300 2000
BDH-060-315 400 39 2400 1300 2000
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Manufacturing Capabilities
Our motor factory scale and product line, products details
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Certifications
We have CE, ISO9001, CCC and other certificates
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Packaging
BDH-100-200 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 250kVA Rated Capacity
Frequently Asked Questions
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM.
How about your service?
We have pre-sale service, in-sale service and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
What are your terms of delivery?
Generally we ship in FOB term, but we could offer the solution for CNF, CIF and DDP, which all based on your requirement.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
