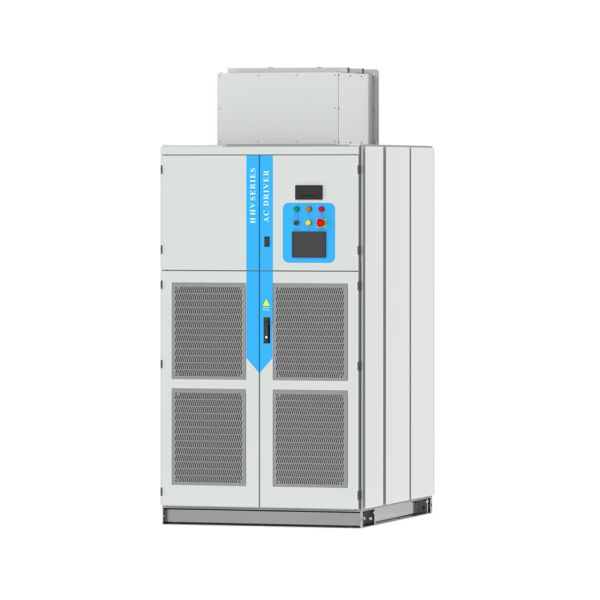

BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity

Model Number : BDH-100-250

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 243 USD

Payment Terms : L/C,T/T

Supply Ability : 30000/Months

Delivery Time : 15days

Drive Type : Frequency Inverter

Insulation Voltage : 800V/1600V

Humidityrange : 5% to 95% non-condensing

Model No : N310-20P5

Output Voltage : Customizable

Output Phase : 3phase

Energy Function : Four-quadrant Energy regeneration

Output Power : 0.75KW-55KW

Packaging Specifications : 50ml~1000ml

Input Voltage : 220V to 380V

Shipping Method : DHL/FedEx/EMS/TNT

Power Range : 2.2KW-5000KW

Motor Compatibility : PMSM Motor

Voltage : 220V,380V,400V,415V,440V,460V,480V

Frequency Resolution : 0.01Hz

Accuracy : 0.5% for VF application

Protectionfeatures : Overvoltage, undervoltage, overload, short circuit, phase loss

Displaytype : LCD or LED display

Size : 167.5*185.8*80mm

Inputfrequency : 50/60 Hz

Response Speed : Rapid

Application : Pumps,fans,compresors,conveyors,Crane

Energy Regeneration : Four-quadrant

Powerrating : 0.5 kW to 500 kW

Controlmethod : V/f control, Vector control, Sensorless vector control

Torque Control : Direct

Colour : grey

Name : Variable Frequency Drive

Contact Now

BDH-100-250 High-Voltage Industrial Motor Starter
Product Overview

Engineered for industrial reliability, the BDH-100-250 is a 316kVA solution that excels in high-torque startup scenarios. This model is favored in global B2B procurement for its ability to perform soft starts on high-voltage motors, significantly reducing mechanical stress and extending equipment life. Its high conversion efficiency directly translates to lower operational expenditures for energy-intensive plants.

BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Technical Specifications
Model Number BDH-100-250
Input Voltage 10kV (±10%)
Rated Capacity 316kVA
Rated Output Current 19A
Efficiency ≥98.5%
Topology Cascaded H-Bridge (CHB)
Communication Modbus / Profibus-DP
Enclosure Rating IP30 (Customizable)
BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Manufacturer Profile

Who We Are: We are a professional enterprise specializing in the R&D, manufacturing, and sales of high, medium, and low-voltage inverters, energy-saving control systems, servo drives, and New Energy Vehicle motor drive technologies. Backed by a dedicated technical and management team with over 20 years of experience in theoretical research, product development, and quality control, we are proud to be one of the pioneers in China to independently develop inverter products.

Technological Excellence: Utilizing world-leading technological solutions including advanced vector control and torque control, our performance has reached international advanced levels, making our products highly capable of directly replacing European, American, and Japanese brands in various demanding applications.

BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Key Features
  • Perfect Sine Wave Output: Multi-level PWM output generates a voltage waveform nearly identical to a pure sine wave, eliminating the need for output filters and preventing motor insulation degradation.
  • Fault-Tolerant Operation: Features advanced redundant control logic. The system can isolate faulty power cells in milliseconds, allowing continuous operation at reduced load.
  • Flying Start (Catch-on-the-fly): Capable of tracking and catching a rotating motor during restart, ensuring seamless transition and minimizing process interruption.
10kV BDH Series Product Range
Model Rated Capacity (kVA) Output Current (A) Width L (mm) Depth W (mm) Height H (mm)
BDH-100-200 250 15 2400 1300 2000
BDH-100-250 316 19 2400 1300 2000
BDH-100-280 350 21 2400 1300 2000
BDH-100-315 400 24 2400 1300 2000
BDH-100-355 450 27 2400 1300 2000
BDH-100-400 500 30 2400 1300 2000
6kV BDH Series Product Range
Model Rated Capacity (kVA) Output Current (A) Width L (mm) Depth W (mm) Height H (mm)
BDH-060-160 200 20 2400 1300 2000
BDH-060-200 250 25 2400 1300 2000
BDH-060-220 275 28 2400 1300 2000
BDH-060-250 315 31 2400 1300 2000
BDH-060-280 350 35 2400 1300 2000
BDH-060-315 400 39 2400 1300 2000
Application Areas
BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Manufacturing Facility

Our motor factory scale and product line, products details

BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Certifications

We have CE, ISO9001, CCC and other certificates

BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Packaging
BDH-100-250 Variable Frequency Drive with 10kV Input Voltage Four-quadrant Energy Regeneration and 316kVA Rated Capacity
Frequently Asked Questions
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We have pre-sale service, in-sale service and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
What are your terms of delivery?
Generally we ship in FOB term, but we could offer the solution for CNF, CIF and DDP, which all based on your requirement.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
